texture of material:

The aluminum alloy anti-static elevated floor panel is made of high-quality aluminum ingots (ADC12). After melting at high temperature, it is formed by one-time vacuum die-casting with high-pressure die-casting process. It has light weight, high strength, high bearing capacity, and large ventilation rate. It can be optionally equipped with ventilation regulators to meet various ventilation needs of the machine room. It has become the material of the data center machine room.

Supporting structure:

Steel supports with different finished surface heights and pipe diameters can be customized to meet different overhead heights and bearing needs. The height of the support itself can be slightly adjusted to solve the local slight elevation difference of the floor. All supports are subject to plating or spraying anti-corrosion treatment.

assemble:

Assembled with networking support, square tube beam and screws.

Functional features:

1?The surface is flat, the overall dimension is accurate, and the exchange is flexible;
2?High strength, high bearing capacity and low deformation;
3?A variety of ventilation rates to facilitate high-speed and stable airflow;
4?Waterproof, anti-corrosion and antimagnetic;
5?Long service life and low maintenance cost.

Use Scenarios:

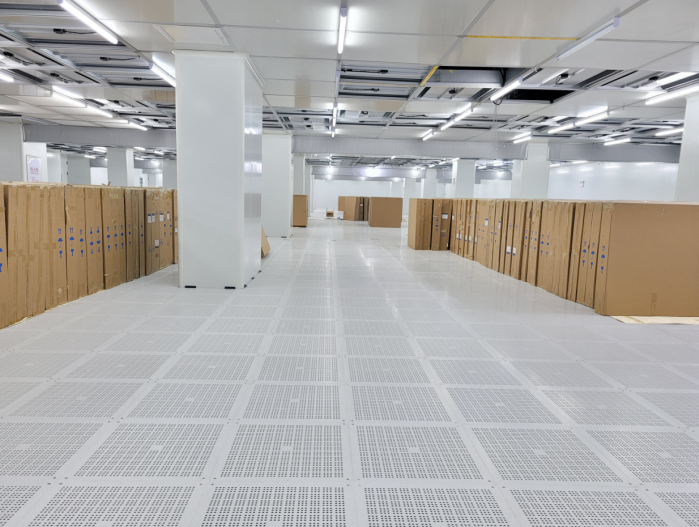

It is mainly used in high-grade clean workshops, clean rooms, semiconductors, microelectronic chips, communication equipment, biochemical plants and other clean environments, as well as various data center rooms with down air supply devices that need to be dust-proof, anti-static, and centralized pipeline laying.

project	content	type 500	type 700	type 1000
1-1	Face brick material	V60AG1000E
1-2	Electrostatic discharge quality of face tile	10^4-10^9Ω
2-1	Floor material	Die-cast Aluminum
2-2	uniform load	1,000kgf/m2 Deflection≦1.0mm	1,500kgf/m2 Deflection≦1.0mm	2,000kgf/m2 Deflection≦1.0mm
2-3	Concentrated load	500kgf/6.45cm2 Deflection≦2.0mm	750kgf/6.45cm2 Deflection≦2.0mm	1,000kgf/6.45cm2 Deflection≦2.0mm
2-4	ultimate strength	1,000kgf/6.45cm2	1,500kgf/6.45cm2	2,000kgf/6.45cm2
2-5	Length width tolerance	600+0.00mm/600-0.20mm
2-6	Thickness width tolerance	± 0.10mm
2-7	Flatness tolerance	± 0.20mm
2-8	Diagonal squareness tolerance	Max. 0.50mm
3-1	Ventilation rate	50%
3-2	Special treatment options	Epoxy spraying
